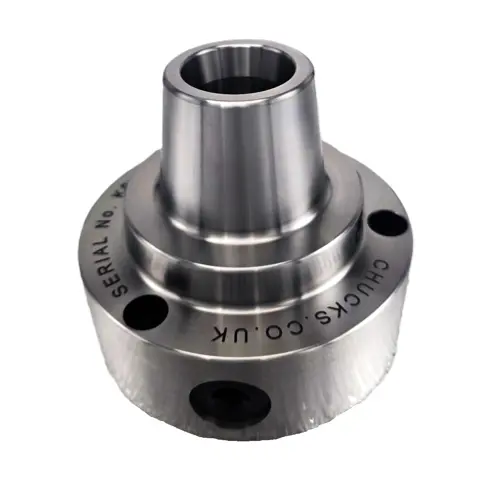

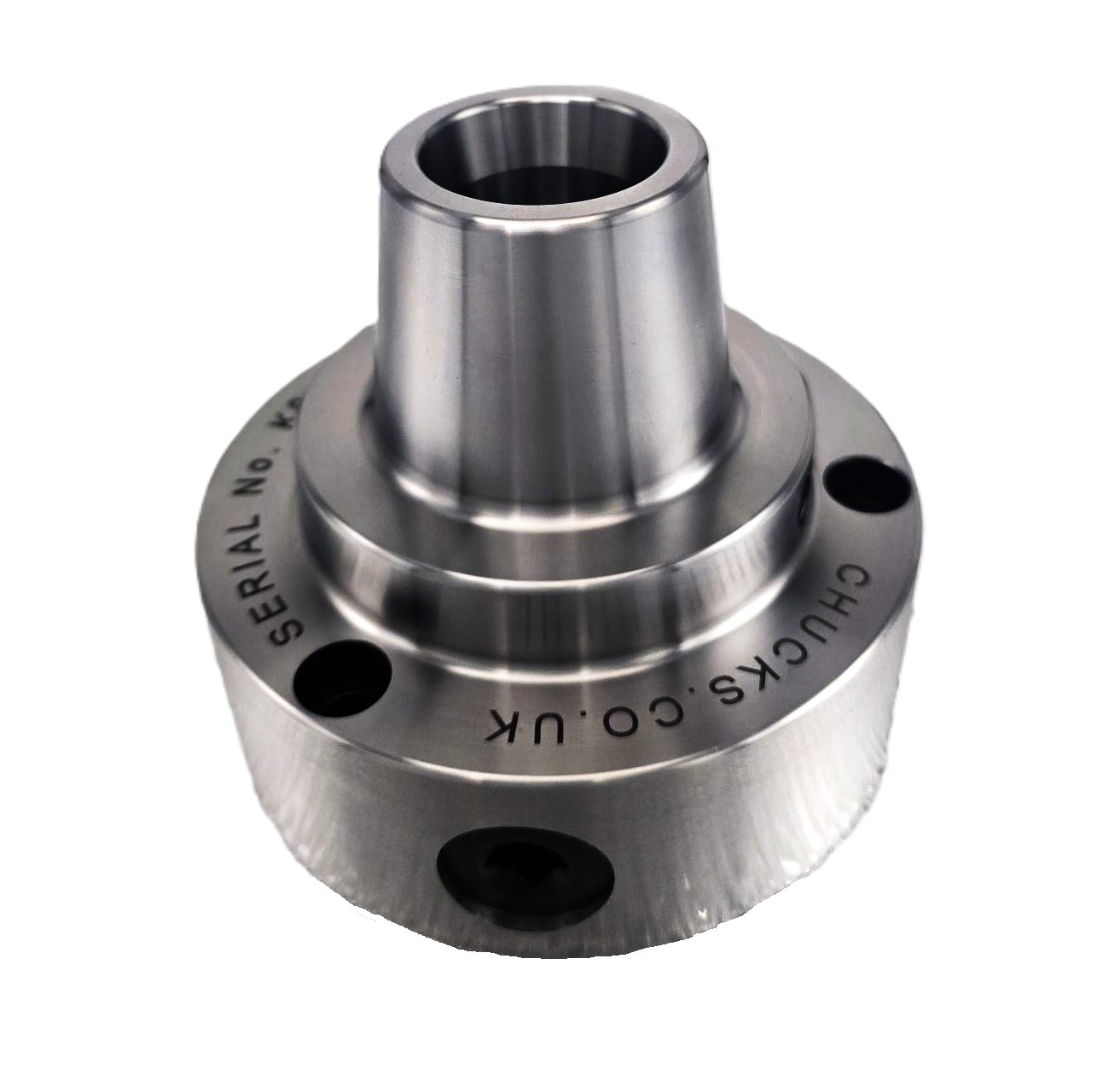

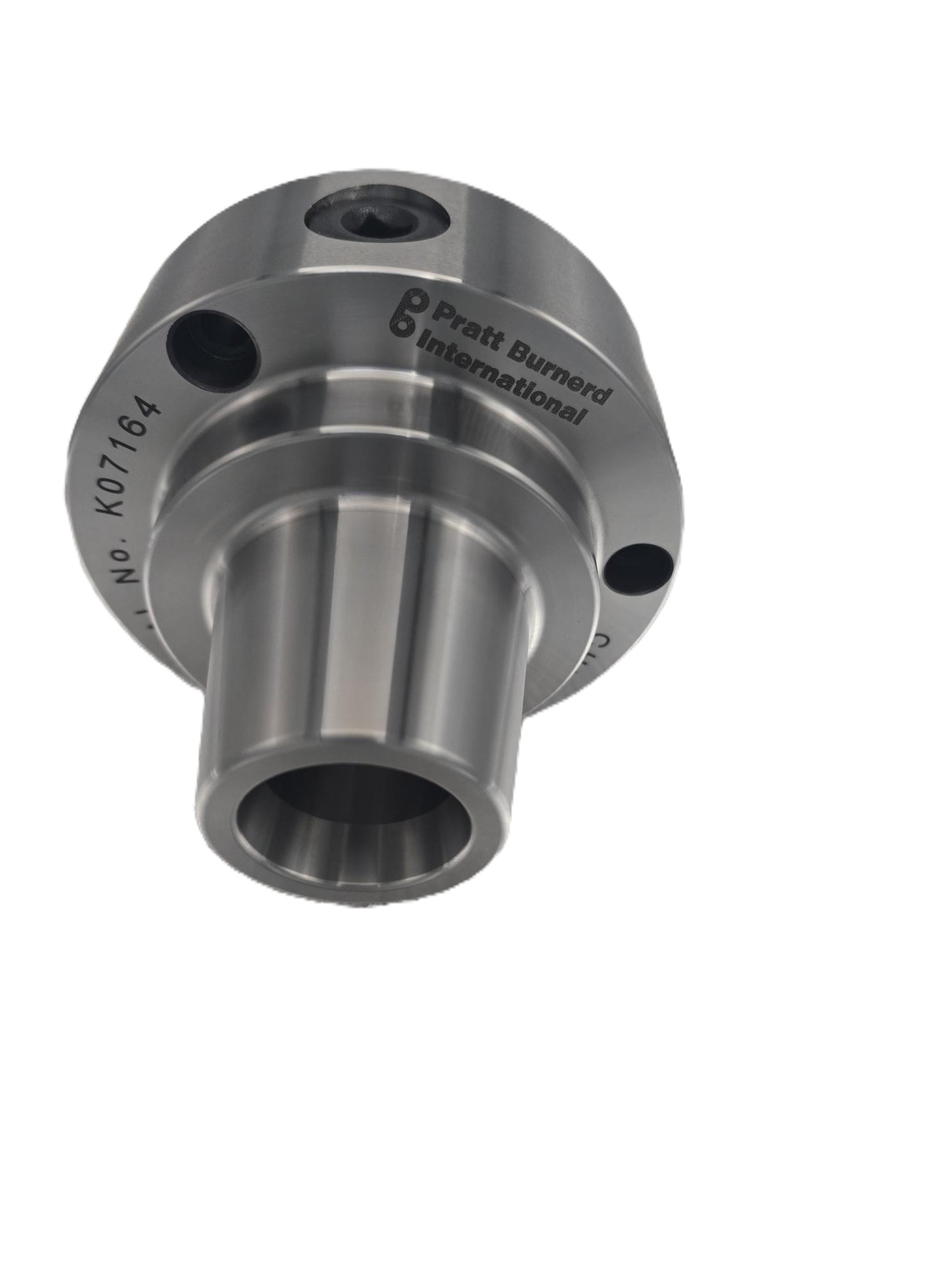

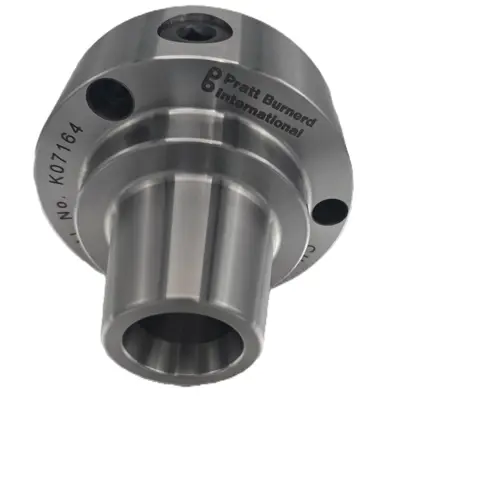

Key operated 5C Collet Chucks
5C key-operated collet chucks offer a precise and versatile manual workholding solution commonly used on lathes, rotary tables, and milling machines. Designed to securely hold round workpieces with minimal runout, these chucks accept standard 5C collets and are tightened using a chuck key. Unlike drawtube or handwheel-operated versions, the key-operated design delivers a more compact setup and increased rigidity—making it ideal for both manual and CNC applications.
- Quick Setup – Easier and faster to load/unload than a drawtube system.
- Compact Design – No rear drawbar needed—saves space on manual or CNC lathes.
- No Machine Modifications – Installs directly to the spindle face with a mounting plate.
- High Accuracy – Maintains concentricity for precision turning or grinding.
- Versatile – Works well for short-run jobs, small parts, or where repeatability is key.
- Options include various spindle mounts (camlock D type, A type, L type, flat back, or taper).
Buy Recess Mount Here
Buy D1-4 Camlock Mount Here

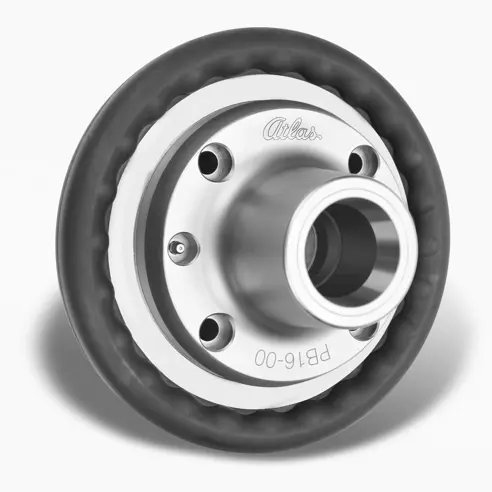

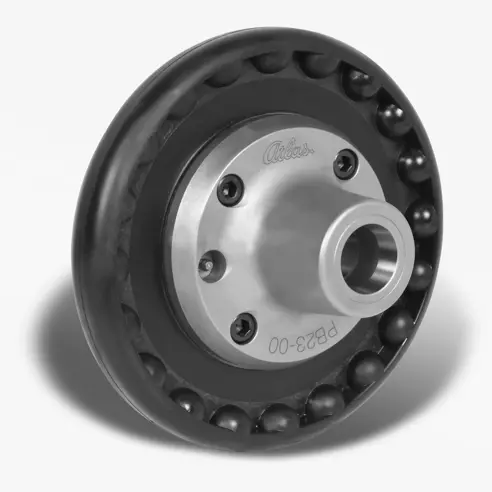

Front Hand-Wheel Collet Chucks
5C & 16C Hand-Wheel Collet Chucks
- Operate via a front-mounted hand wheel—no draw tubes or linkages.
- Quick switch between chucking modes using 5C or 16C collets.
- Industry-grade accuracy: ≤0.0005″ TIR.
- Nickel plated bodies and nitride hardened hand wheel teeth for durability.
- Options include various spindle mounts (camlock D type, A type, L type, flat back, or taper).

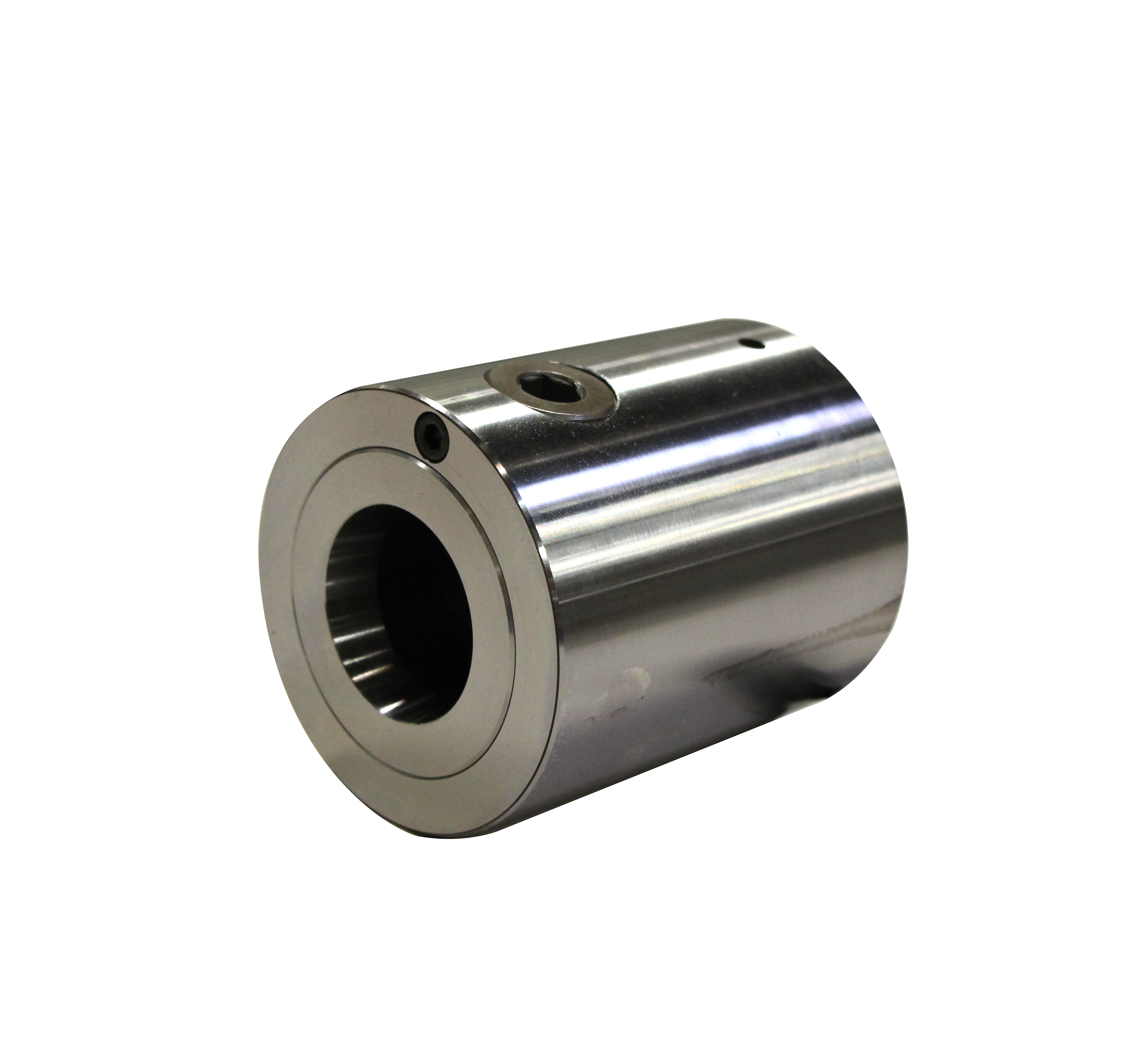

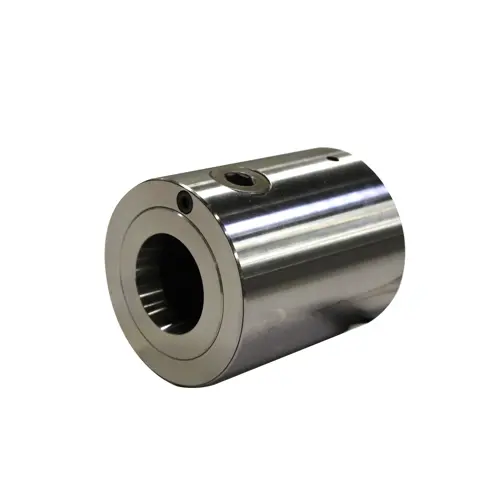

Quick-Change Dead Length Collet Chuck Adapter – CNC Lathe & Mill Workholding Fixture
Fast, Precise & Versatile Workholding — No Setup Required
Boost efficiency with this hardened and ground quick-change collet chuck adapter, designed for seamless switching between collet and chuck work. Ideal for mills, machining centres, and CNC lathes, especially in short-run or job-shop environments.
Key Features
- Quick Changeover - Instantly switch from chuck work to collet work—no tear down or setup required.
- High Precision - Max cone TIR of 0.0005" ensures exceptional accuracy and repeatability.
- Fixture-Ready Design - Features four 1/2-20 tapped holes and a 1.5" x 1/4" recess for fixture mounting.
- Universal Compatibility - Works with power or manual chucks, vertical/horizontal mills, and machining centres.
- Dead Length Design - Maintains consistent part length and eliminates part pull-back during clamping.
- Stackable for Production - Stack multiple units for high-efficiency, multi-part setups.
- Hex Key Included - Comes ready to use—includes mounting holes, hardware, and hex key.
- 12-Month Warranty - Backed by a full one-year manufacturer’s warranty for peace of mind.
Buy Here
